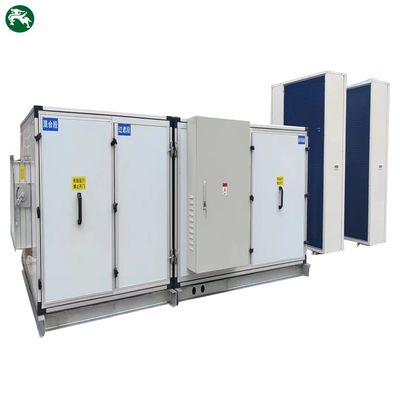

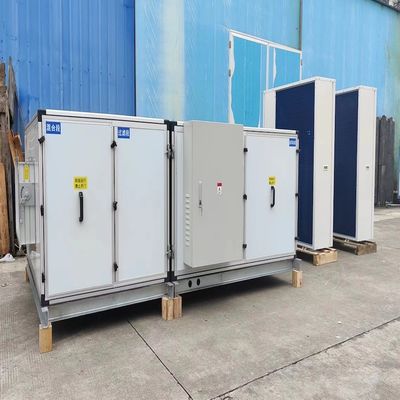

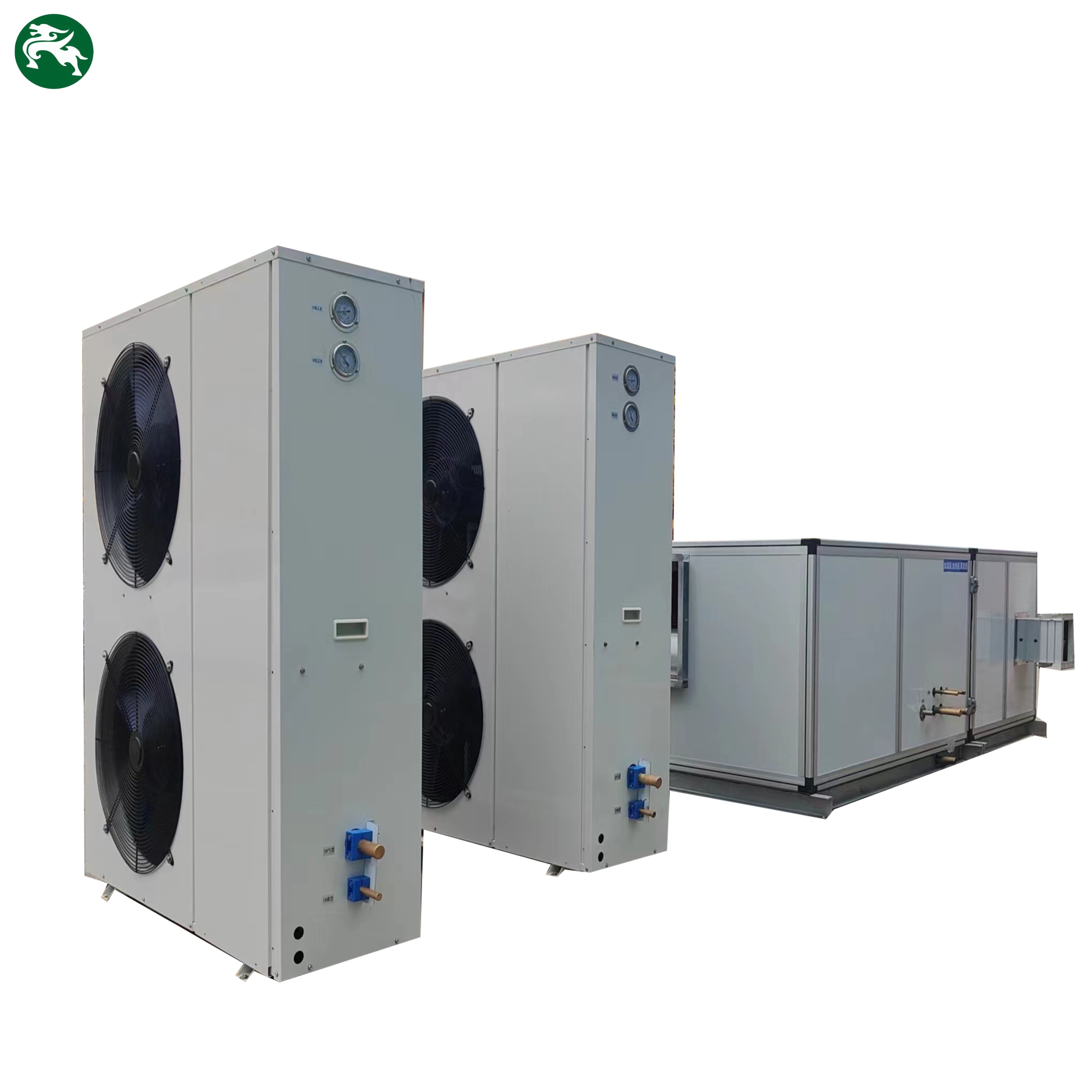

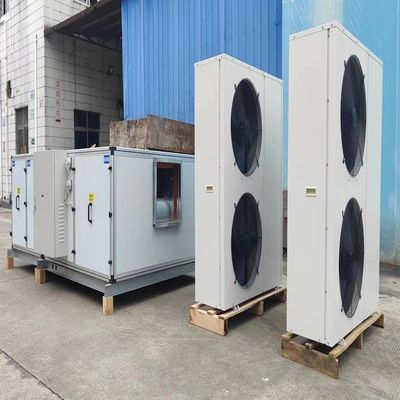

Air Cooled Direct Expansion Air Handling Unit Constant Temperature And Humidity Control Type

Air Cooled Direct Expansion Air Handling Unit Constant Temperature And Humidity Control Type

  • Air Cooled Direct Expansion Air Handling Unit Constant Temperature And Humidity Control Type
  • Air Cooled Direct Expansion Air Handling Unit Constant Temperature And Humidity Control Type
  • Air Cooled Direct Expansion Air Handling Unit Constant Temperature And Humidity Control Type
  • Air Cooled Direct Expansion Air Handling Unit Constant Temperature And Humidity Control Type
Air Cooled Direct Expansion Air Handling Unit Constant Temperature And Humidity Control Type
Product Details:
Place of Origin: China
Brand Name: Longer Leader
Certification: ISO9001, CQC
Model Number: LDMR-25HP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export standard paper carton or wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30~50 sets / Month
Contact Now
Detailed Product Description
Product Name: Air Handling Unit Installation: Ceiling Hang/floor Installation
Air Flow: 5,000~15,000 M3/h Place Of Origin: China
Warranty: 1 Year Cooling Capacity(kW): 35~75 Kw
Heating Capacity(kW): Optical Brand Name: Longer Leader
Video: Provided After-sales Service Provided: Online Support
Type: Air Cooled Direct Expansion
Highlight:

Air Cooled direct expansion air handling unit

,

15000m3/h direct expansion air handling unit

,

5000m3/h ac ahu unit

Air-Cooled Direct Expansion Air Handling Unit Constant Temperature And Humidity Control Type

Overview
Quick Model Selection for Typical Units





     Model      Air volume
      (CMH)
   Cooling
    (KW)
 Fan motor
   (KW)
    Heating
     (KW)
  Humidification
      (kg/h)
     Unit noise(db(A))
LDPTU-03HP          1500       7.8       0.75         6           3 65
LDPTU-05HP          2500       13       1.5         6           5 65
LDPTU-07HP          3500       18       1.5         9           8 65
LDPTU-08HP          4000       20.8       2.2        12           8 65
LDPTU-10HP          5000       26       2.2        15          10 70
LDPTU-12HP          6000       31.2       3        18          10 70
LDPTU-15HP          7500       39       4        18          15 70
LDPTU-20HP        10000       52      5.5        24          15 72
LDPTU-25HP        12500       65      7.5        30          20 74
LDPTU-30HP        15000       78      7.5        36          25 74
LDPTU-36HP        18000       93.6      11        48          32 76
LDPTU-40HP        20000      104      11        54          32 78
LDPTU-50HP        25000      130      15        66          45 80
LDPTU-60HP        30000      156      15        72          45 80


Note:

Follow the standard quality condition JISB8616-1984;
Indoor air dry/wet bulb temperature (℃): 27℃DB/19.5℃WB;
Cooling water temperature: inlet water 30℃. The outlet water is 35℃, and the humidification
amount and electric heating amount are selected according to the actual working conditions.

Product Description



Longer Leader air handling unit (AHU) air flow range is from 1,000m3/h to 300,000m3/h. Available functional sections includes fresh and retuen air mixing section, cooling and heating coil section, filter, electric heating, humidifying, heat recovery, secondary air-return, fan and air diffuser section etc..



When you choose a rooftop heating and cooling system, you don't lose several square feet to cooling system installation. There's no concrete pad to pour, no landscaping disruption or cutting down the size of your outdoor living space! The unit sits atop the roof, taking up space you wouldn't otherwise use.



Are packaged units better than split one?



Efficiency - Packaged units are assembled in factories, which typically means they are more efficient than split system.
Easy installation - As packaged units are only one single units, they are easier and more versatile to install.



Robust structure



The surface of the unit is made of quality color sheet, 1.0mm and 1.5mm thickness, which can resist corrosion, scratch and ultraviolet radiation.



The panel has 2 thicknesses in 25mm and 50mm. Inside the panel, hermetically foamed polyurethane(no fluorine) with a density of 40kg/m3 is used as the heat insulating material.



100% Fresh Air AHU ( heating and cooling)





Air Cooled Direct Expansion Air Handling Unit Constant Temperature And Humidity Control Type 0Air Cooled Direct Expansion Air Handling Unit Constant Temperature And Humidity Control Type 1Air Cooled Direct Expansion Air Handling Unit Constant Temperature And Humidity Control Type 2



Mixing Air AHU (single cooling)

Air Cooled Direct Expansion Air Handling Unit Constant Temperature And Humidity Control Type 3Air Cooled Direct Expansion Air Handling Unit Constant Temperature And Humidity Control Type 4



PCR labortory AHU

Air Cooled Direct Expansion Air Handling Unit Constant Temperature And Humidity Control Type 5

Application


Laborory, Data center, Workshop, Hospital, Pharmaceutical, Railway station, Subway, Airport,

Office, Hotel,Supermarket,Airport, Factory,Villa .



Longer Leader Advantages


Variable speed drive (VSD) technology, explosion proof and energy saving.
