Name: Dehumidifier Evaporator Hydrophilic Aluminum Fin Condenser Air Cooled Heat Exchanger
Brand: Guangdong Longer Leader Energy Equipment Co.,Ltd.
SKU: LDCEA
Availability: InStock

Home Products Evaporator

Dehumidifier Evaporator Hydrophilic Aluminum Fin Condenser Air Cooled Heat Exchanger

Product Details:

Place of Origin:	China
Brand Name:	Longer Leader
Certification:	ISO9001, CQC
Model Number:	LDCEA

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export standard paper carton or wooden case
Delivery Time:	30 days
Payment Terms:	T/T
Supply Ability:	100~150 sets / Month

Contact Now

Detailed Product Description

Product Name:	Evaporator	Place Of Origin:	China
Warranty:	1 Year	Heating Capacity(kW):	Optical
Brand Name:	Longer Leader	Video:	Provided
After-sales Service Provided:	Online Support	Type:	Cooling And Heating
Highlight:	dehumidifier evaporator hydrophilic , hydrophilic heat exchanger evaporator , aluminum fin dehumidifier evaporator

Dehumidifier Evaporator Hydrophilic Aluminum Fin Condenser Air-Cooled Heat Exchanger

Quick Model Selection for Suface Cooler Evaporator

Cooper series: copper series tube with two diameter, Φ15.88mm*(0.75-1.5), Φ12.7mm*(0.7-1.0), thickness is 0.38, and the thickness of the sheet is 0.115.

Copper tube dia.	Hole spacing	Row spacing	Cover material	Pitch
Φ15.88mm	38.1mm	33mm	Stainless steel foil/aluminum foil/copper/hydrophilic foil	2.0~5.2mm
Φ12.7mm	31.75mm	27.5mm	Aluminum foil/copper/hydrophilic foil	1.8~3.5mm

Stainless steel series: stainless steel series tube with two diameter, Φ15.88mm*(0.75-1.5), Φ12.7mm*(0.7-1.0), thickness is 0.65~1.5, and the thickness of the sheet is 0.115.

Stainless steel tube dia.	Hole spacing	Row spacing	Cover material	Pitch
Φ15.88mm	38.1mm	33mm	Stainless steel foil/aluminum foil/copper/hydrophilic foil	2.0~5.2mm
Φ12.7mm	31.75mm	27.5mm	Aluminum foil/copper/hydrophilic foil	1.8~3.5mm

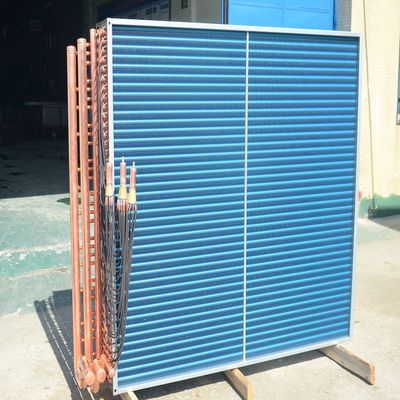

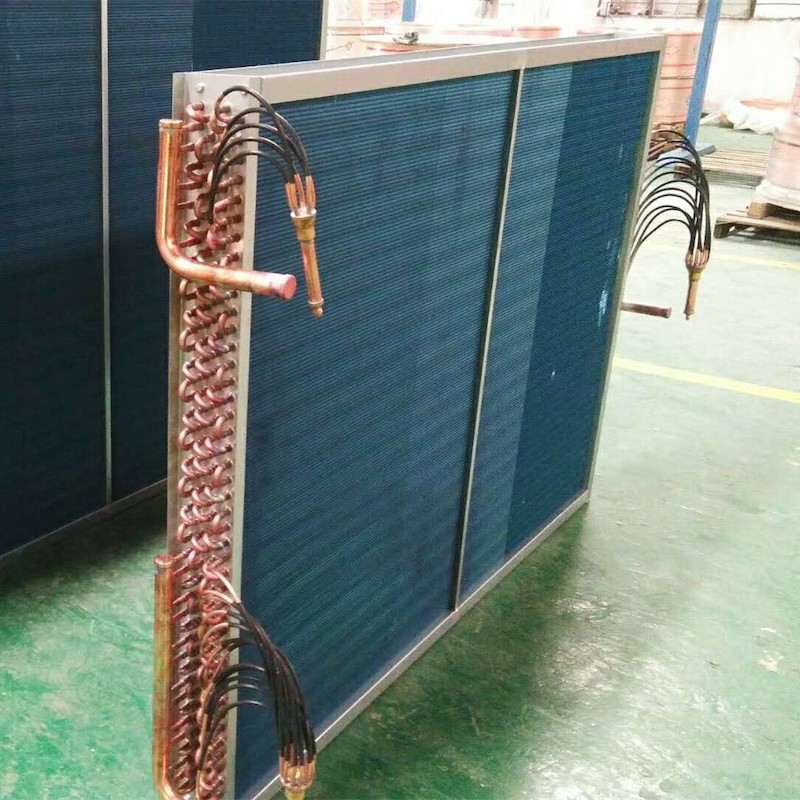

Evaporator Show

Longer Leader air handling unit (AHU) air flow range is from 1,000m3/h to 300,000m3/h. Available functional sections includes fresh and retuen air mixing section, cooling and heating coil section, filter, electric heating, humidifying, heat recovery, secondary air-return, fan and air diffuser section etc..

Dehumidifier Evaporator Hydrophilic Aluminum Fin Condenser Air Cooled Heat Exchanger 0

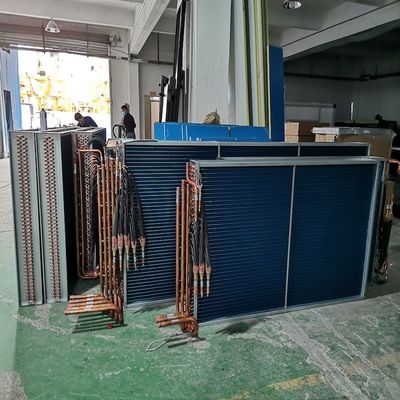

Longer Leader Factory Show

Dehumidifier Evaporator Hydrophilic Aluminum Fin Condenser Air Cooled Heat Exchanger 4

Dehumidifier Evaporator Hydrophilic Aluminum Fin Condenser Air Cooled Heat Exchanger 5

Application

Laborory, Data center, Workshop, Hospital, Pharmaceutical, Railway station, Subway, Airport,

Office, Hotel,Supermarket,Airport, Factory,Villa .

Longer Leader Advantages

Variable speed drive (VSD) technology, explosion proof and energy saving.
